atlantic-series
Industrial Ultrafast Laser

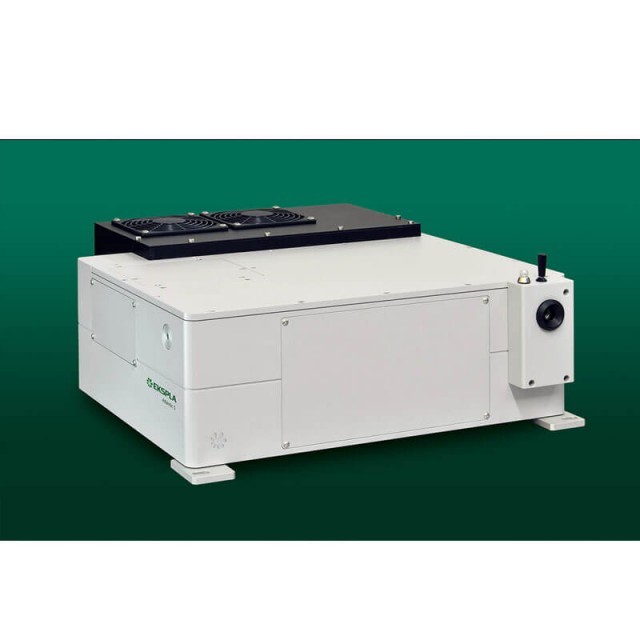

Atlantic Series

High Power Industrial Picosecond Lasers

For micromachining applications
Up to 30 W at 355 nm
Up to 40 W at 532 nm
Up to 80 W at 1064 nm
10 ± 3 ps pulse duration
Low ownership cost

Features

Up to 80 W at 1064 nm
Optional 532 nm and 355 nm wavelengths (could be all 3 electronically switchable wavelengths)
Up to 1 MHz repetition rate
Up to 200 µJ pulse energy
Short pulse duration 10 ps
Excellent beam quality M² < 1.3
Versatile laser control and syncronisation capabilities
Smart triggering for synchronous operation with polygon scanner and PSO
Monolythic, sealed and rugged design
Low ownership cost
Nanosecond pulse duration mode (optional)

Materials

Various metals
Silicon
PET, PP, PI, PTFE
Silicone
PCB
Solar cells
LCD, LED, OLED, microLED display panels
Brittle materials including glass, ceramics, sapphire and PCD

Applications

Drilling / Cutting / Patterning / Structuring / Ablation / Dicing
Micromachining / LCD, OLED cutting
Laser induced forward transfer
Sapphire structuring and dicing
Ceramics micromachining
PCD drilling and tracing
Silicon scribing
PET, PP, PTFE, Silicone cutting and drilling
