Jasper Flex
Industrial Femtosecond Laser
Features
All fiber design
Based on truly all-fiber, SESAM-free Fluence Oscillator
Long lifetime
Unprecedented stability
Reduced size
Standard 270 fs – 8 ps pulse duration tuning by default
Burst mode for process enhancement included by default
Applications
Display repair
Micromachining

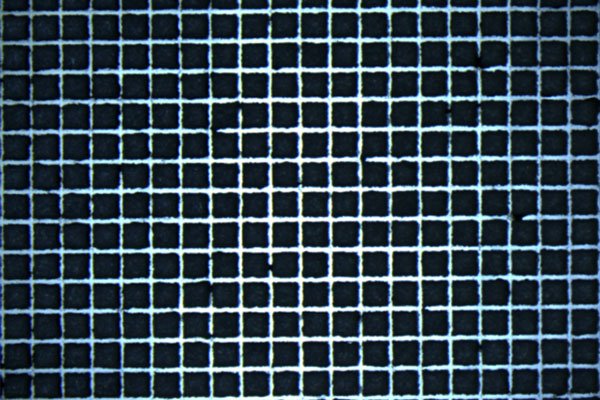

Polymer cutting

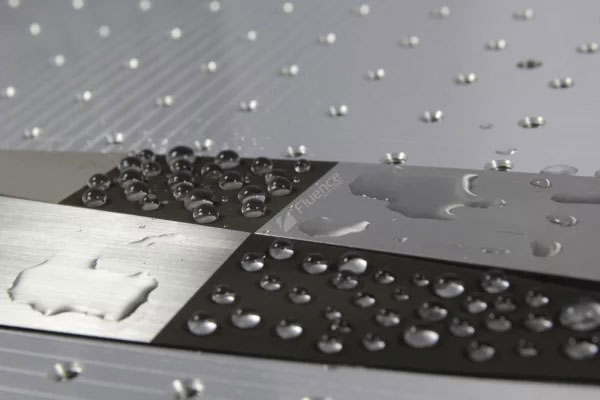

Surface structuring
Ophthalmology
FIBS sample preparation for AFM
Pump and probe spectroscopy
(when used in tandem with Fluence Harmony)
Three-photon excited fluorescence
(when used in tandem with Fluence Harmony)
Pumping of Optical Parametric Amplifiers (e.g. Fluence Harmony)
Product Gallery
Specifications
| Model | Jasper Flex |
|---|---|
| Maximum average power | 30 W (ask for higher) |
| Maximum pulse energy | 30 μJ up to 1 MHz (ask for higher) |
| Maximum burst energy | 100 μJ @ 200 kHz, 1030 nm |
| Base repetition rate | 20 ±2 MHz |
| Two stage repetition rate tuning, selectable with control software |
1 - 20 MHz, internal repetition rate Single Pulse - 1 MHz, realized with built-in pulse picker |
| Pulse duration | < 270 fs FWHM (< 250 fs typical) |
| Pulse duration tuning | < 270 fs - 8 ps, software-controlled (< 270 fs - 20 ps optional) |
| Central wavelength | 1030 ± 5 nm |
| Optional wavelength outputs | With Harmonic Generation Module (HGM): 515 nm, 343 nm, 258 nm (available upon request) |
| Polarization | Linear, vertical |
| Beam quality M2 | < 1.2 (~ 1.1 typical) |
| Output beam waist diameter 1/e2 | 2.5 ± 0.5 mm (ask for other) |
| Burst mode for process enhancement | Included |
| 6U, 19" rack-mountable chiller | Included |
| External gating trigger | Included |
| External analog power modulation | Included |
| Laser control software | Included |
| Pulse on demand | Included |
*All specifications are subject to change without prior notice due to continuous improvements.
