Underwater PIV
Time-Resolved 2D-/Stereo and Tomo-PIV systems
for hydrodynamic applications

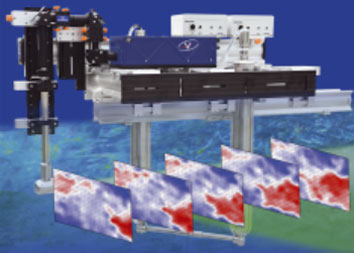

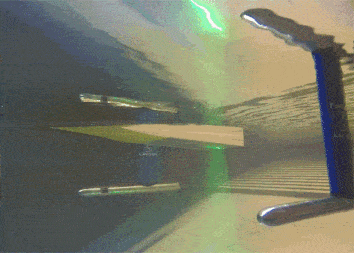

The modular concept of LaVision’s FlowMaster Underwater PIV systems allows a large variety of PIV imaging configurations for uncompromised performance. 2D-, Stereo- and Tomo-PIV measurements are realized using torpedo designs or compact vertical borescope setups. The submarine housings consist of high quality stainless steel tube components containing the remotely controlled PIV camera(s) and sheet optics. Hydrofoils cover the stiff vertical support tubes for minimum drag and wake. The laser and electronic components are accommodated in watertight housings mounted on the carriage above water level. The whole construction is CFD optimized and carefully tested up to a maximum towing speed of 7 m/s at a water depth of 1.5 m.
MiniShaker Underwater

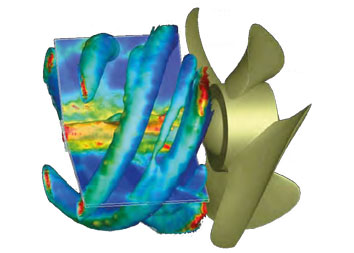

The MiniShaker Underwater module is a very compact, watertight multi-camera system ideal for time-resolved volumetric PTV (Shake-the-Box) and Tomographic PIV measurements in underwater applications. High-density particle tracks, velocity fields, acceleration data and pressure fields with Pressure from PIV can be obtained.
