Thermographic PIV
Simultaneous temperature and flow field imaging
Temperature-sensitive PIV particles
Thermographic PIV marks a real breakthrough for simultaneous flow velocity and temperature measurements, because it works with phosphorescent PIV particles, which are suitable both for PIV and laser induced thermometry measurements with only slightly modified PIV systems.
The phosphorescent PIV seeding material comes as a ceramic powder consisting of 2 µm particles showing a temperature sensitive emission after UV laser excitation which is used both for PIV and thermometry.
Due to their small size the powder particle rapidly assume the velocity and temperature of the surrounding flow.

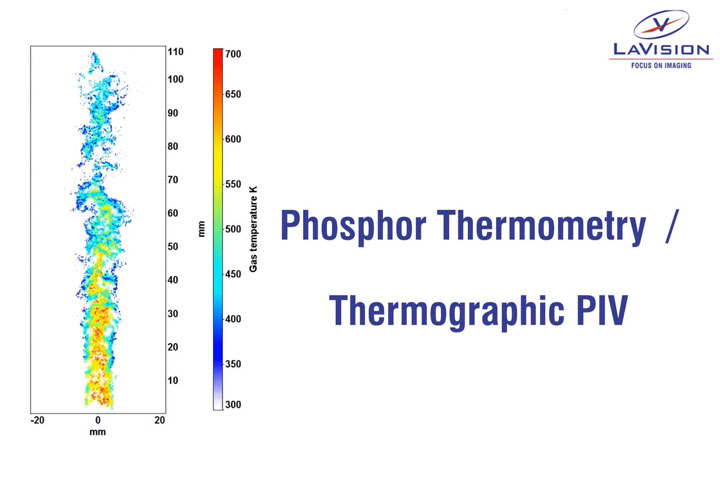

Time-resolved thermal flow field imaging is possible based on High-Speed FlowMaster PIV systems.
Measurement Principle
Thermographic PIV is a combination of two independent commonly used measurement techniques:

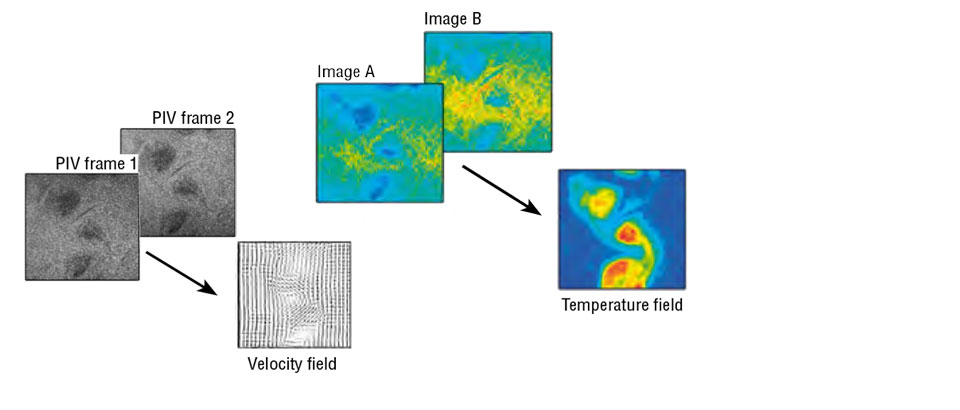

Flow field velocities are determined from double frame images of the seeding particles using particle image velocimetry (PIV). All 2D PIV techniques can be applied, such as planar, stereo and time resolved PIV.
Flow temperature is measured using phosphor thermometry. A 2-color ratiometric approach is used to exploit the temperature dependent behavior of the phosphorescence.
Several hardware configurations are possible for Thermographic PIV. Existing hardware such as a FlowMaster PIV system can be easily upgraded to perform simultaneous flow field and temperature imaging.

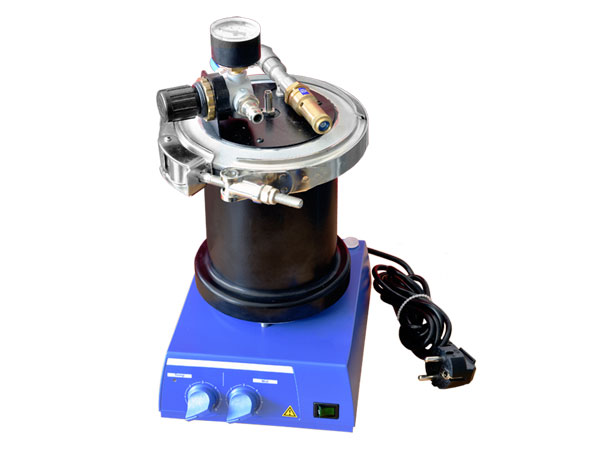

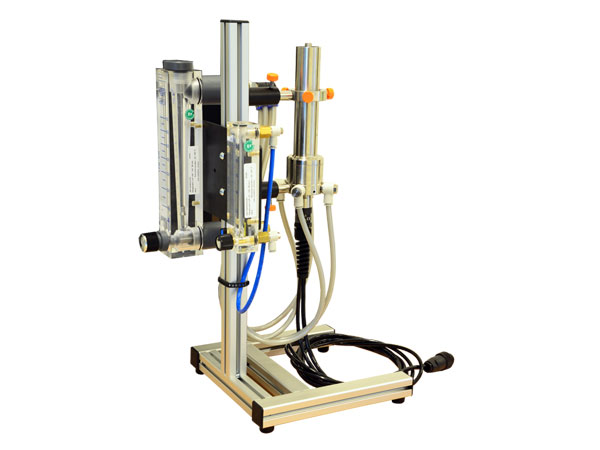

Accessories such as seeding devices and a hot air temperature calibration jet are available.
