Features
Available Standard for Ø430 µm Coatings
50 mm Maximum Recoat Length
Compatible with High-Index Recoat Material
Ideal for Medium- to High-Volume Manufacturing
Specifications

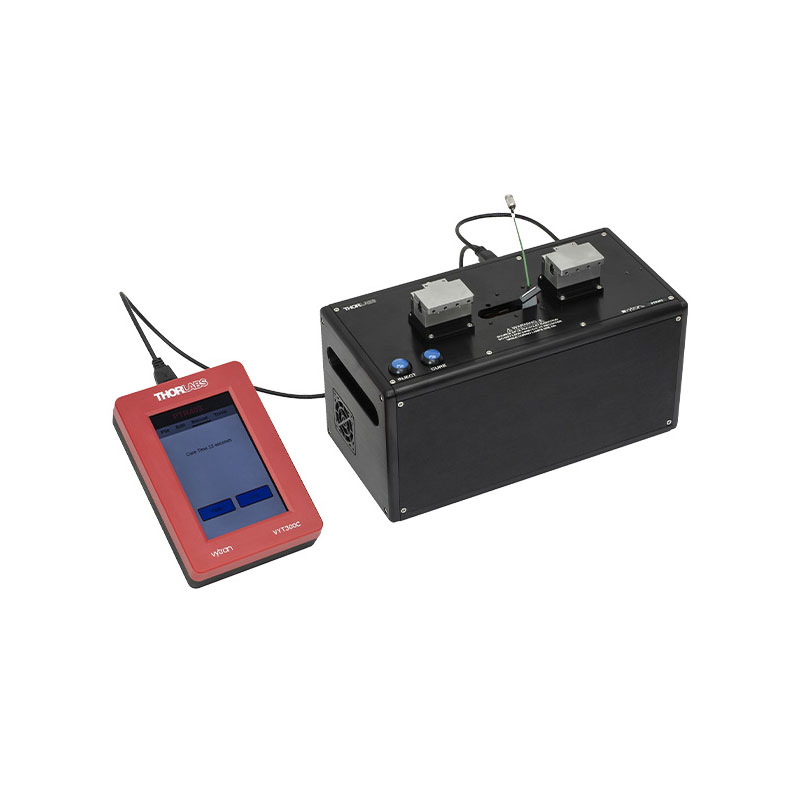

| Fiber Recoaters with UV Curing LEDs | PTR403 |
|---|---|
| Recoater Type | Manual |
| Recoater Mold | Hinged Split Quartz Plates |
| Recoat Diameter (a) | 280 µm, 430 µm, or 600 µm(b) |
| UV Curing Source | 14 UV LEDs (Integrated in Mold Assembly) |
| Maximum Recoat Length | 50 mm |
| Recoat Material | High-Index UV Curable Acrylate |
| Recoat Injection | Automatic |
| Recoat Volume | Programmable (µL) |
| Recoat Injection Rate | Programmable (≤1.8 µL/s) |
| Cure Time (c) | 15 s (Typical) |
| Mold Cleaning Requirement (d) | After Every Recoat |
| Total Cycle Time | 60 s (Typical) |
| Dimensions (L x W x H) | 10.14" × 5.30" × 6.88" (e) (257.4 mm × 134.6 mm × 174.8 mm) |
| AC Power | 100 - 240 VAC, 47 - 63 Hz |
(a) Custom sizes available.
(b) Depends on the Mold Assembly.
(c) Programmable via Controller; Mold Size and Recoat Material Dependent.
(d) The mold should be cleaned with either acetone or isopropyl alcohol, applied with a cotton swab. If the mold has an accumulation of cured material stuck on the plates, allow the cleaning solution (preferably acetone) about 60 - 90 seconds to soften and lift the material from the surface.
(e) With required mold assembly (sold separately) installed.
