Features
Test Fiber Strength and Durability After Fusion Splicing
Two Versions Available

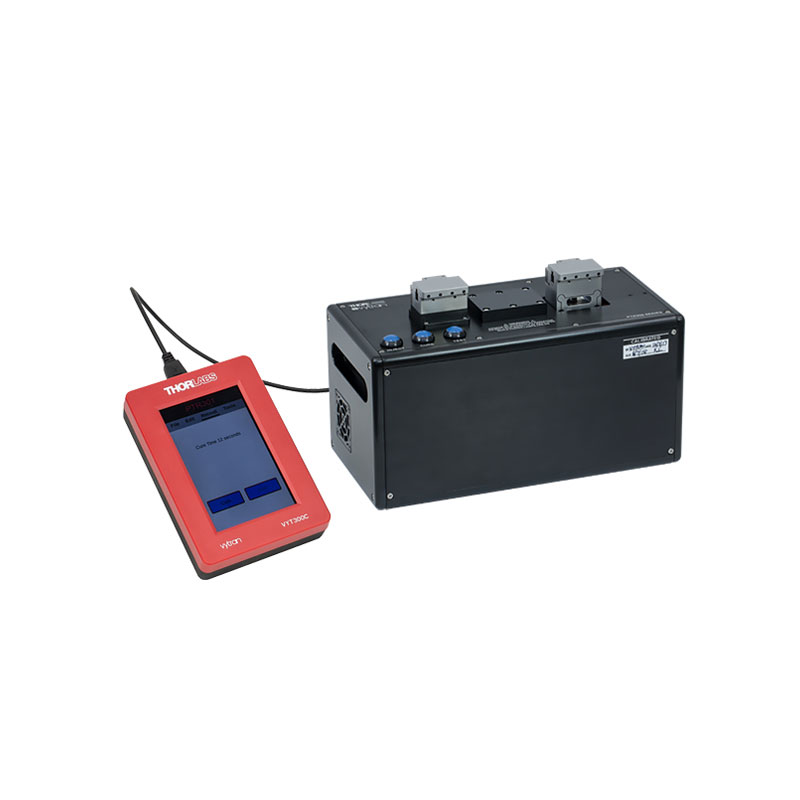

- Linear: Proof Testing with Loads up to 20 N (4.5 lbs)

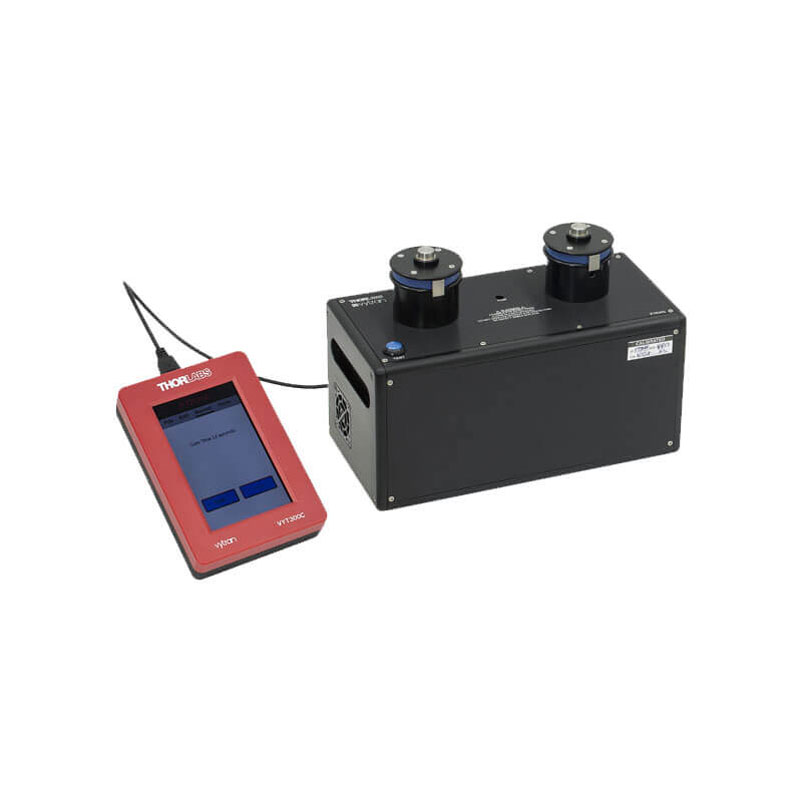

- Rotary: Proof and Tension Testing with Loads up to 89 N (20 lbs)
Fully Programmable Using Handset Controller
Alternative Controller and Replacement Test Grips Sold Separately Below
Specifications
| Item | PTR301 | PTR302 |
|---|---|---|
| Proof Tester Type | Linear | Rotary |
| Load Mechanism | 1.5" (38 mm) Linear Fiber Clamp | Ø2" (50.8 mm) Rotating Mandrel (a) |
| Fiber Spacing | 2.9" (74 mm) | 5" (127 mm) |
| Minimum Fiber Length | 6" (150 mm) | 17" (432 mm) |
| Maximum Load | 20 N (4.5 lbs) 235 kpsi (1.6 GPa) for a Ø125 µm Fiber |
89 N (20 lbs) > 800 kpsi (5.5 GPa) for a Ø125 µm Fiber |
| Accuracy | ±2% | |
| Ramp Rateh (b) | Programmable, ≤22.2 N/s (5 lbs/s) | Manual, ≤22.2 N/s (5 lbs/s) |
| Display Units | lbs, kg, N, kpsi, and GPa | |
| Weight | 4.5 lbs (2.0 kg) | |
| Dimensions (L × W × H) | 10.14" × 5.22" × 6.37" (257.4 mm × 132.5 mm × 161.8 mm) |
10.14" × 5.30" × 7.27" (257.4 mm × 134.6 mm × 184.5 mm) |
(a) Check the minimum short-term bend radius of the fiber to be tested to ensure its compatibility with the Ø2" mandrel.
(b) The ramp rate is the rate at which the load is applied to the fiber.
