Features
Splice Standard and Specialty Optical Fibers with Cladding Diameters up to 1.25 mm
- Filament Fusion for Precise and Consistent Splicing
- Wide Thermal Dynamic Range for Various Fiber Sizes and Fusion Processes
- Fire Polishing for Enhanced Splice Strength
True Core Imaging™ for High Resolution Fiber Alignment
Thermally Diffuse Fiber Cores to Produce Mode Field Adapters
Real-Time Control System and Machine-Level Programming
Specifications

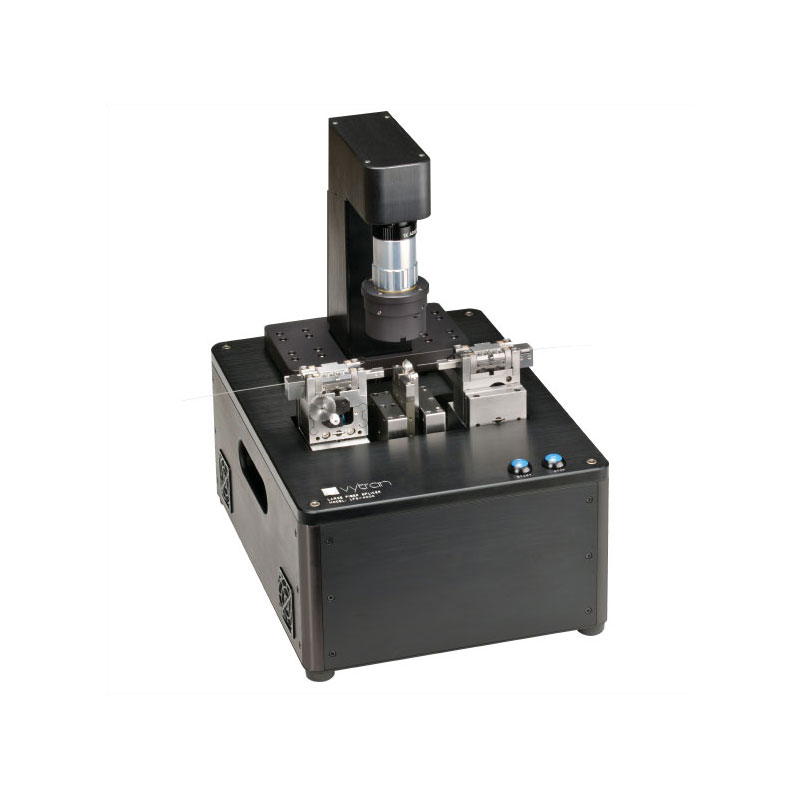

| LFS4100 Filament Fusion Splicer | |
|---|---|
| Fiber Cladding Diameter | 125 µm - 1.25 mm |
| Size (L x W x H) | 9.0" x 12.5" x 5" (230 mm x 320 mm x 130 mm) |
| Weight | 29 lbs (13 kg) |
| Operating Temperature Range | 15 to 40 °C |
