Features
Cut Glass Fibers up to Ø1500 µm and Epoxy Beads up to Ø3 mm
Includes FC/PC, SC, SMA, MT, and LC Connector Mounts
• Includes Two Cannula Stops:
- Ø1.25 mm Cannula Stop for LC Connector Mount
- Ø2.5 mm Cannula Stop for FC/PC & SC Connector Mount

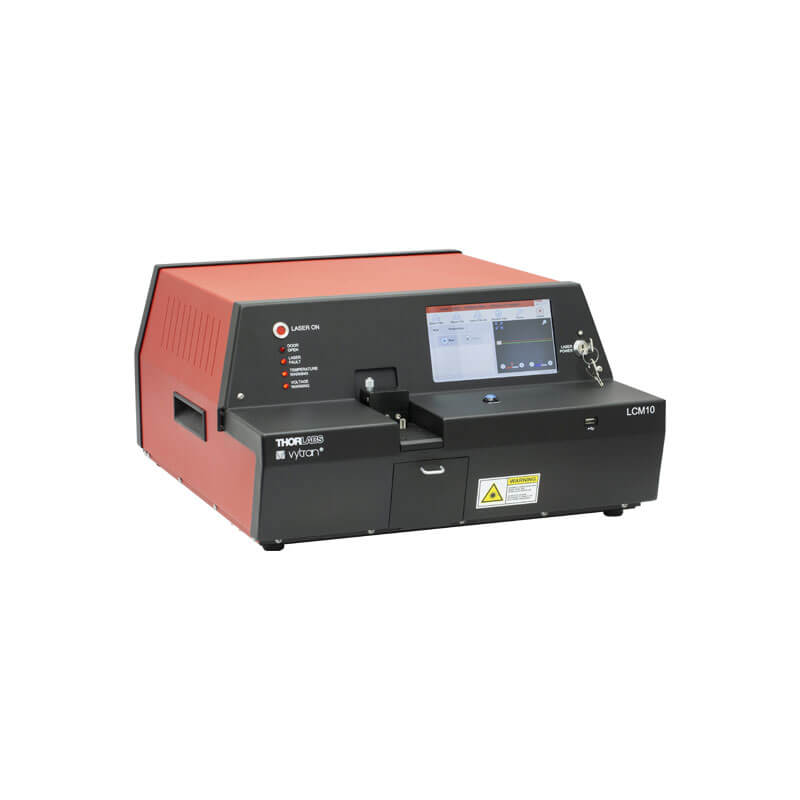

CO2 Laser Cutter with Touchscreen Control
Ethernet Connectivity for Diagnostics
Specifications
| LCM10 | |
|---|---|
| Laser Wavelength | 10.6 µm |
| Laser Output Power | 40 W (Max) |
| Power Stability | ±5% |
| Duty Cycle | 0 - 99% |
| Maximum Fiber Size | Ø1.5 mm |
| Supported Connector Types (One Mount for Each Included) |
FC/PC and SC MT SMA LC |
| Included Cannula Stops | Ø1.25 mm Cannula Stop (For LC Connector Mount) Ø2.5 mm Cannula Stop (For FC/PC & SC Connector Mount) |
| Cut Time, Fiber Diameter ≤ 600 µm | <4 seconds |
| Cut Time, Fiber Diameter > 600 µm | <8 seconds |
| Fiber Protrusion Distance (Before Cutting) | 1 - 50 mm |
| Minimum Cut Height, 1.25 mm Ferrule (a) | 60 - 90 µm |
| Minimum Cut Height, 2.5 mm Ferrule (a) | 80 - 120 µm |
| Minimum Cut Height, 3.2 mm Ferrule (a) | 120 - 160 µm |
| Cut Height Repeatability | ±10 µm |
| Power Input | 90 - 264 VAC, 47 - 63 Hz 8.2 A @ 115 VAC, 3.9 A @ 230 VAC |
| Operating Temperature | 15°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0 to 75% Relative Humidity (Non-Condensing) |
| Storage Humidity | 0 to 90% Relative Humidity (Non-Condensing) |
| Altitude Range | 0 to 2000 m Above Sea Level |
| Dimensions (L x W x H) | 23.11" x 18.25" x 9.95" (586.9 mm x 463.6 mm x 252.7 mm) |
| Weight | 46.8 lbs (21 kg) |
| Packaged Weight | 64.8 lbs (29 kg) |
(a) There is a range of minimum cut heights since the beam is conical, and the angle of the cone and the diameter of the ferrule determine how close the fiber can be cut.
