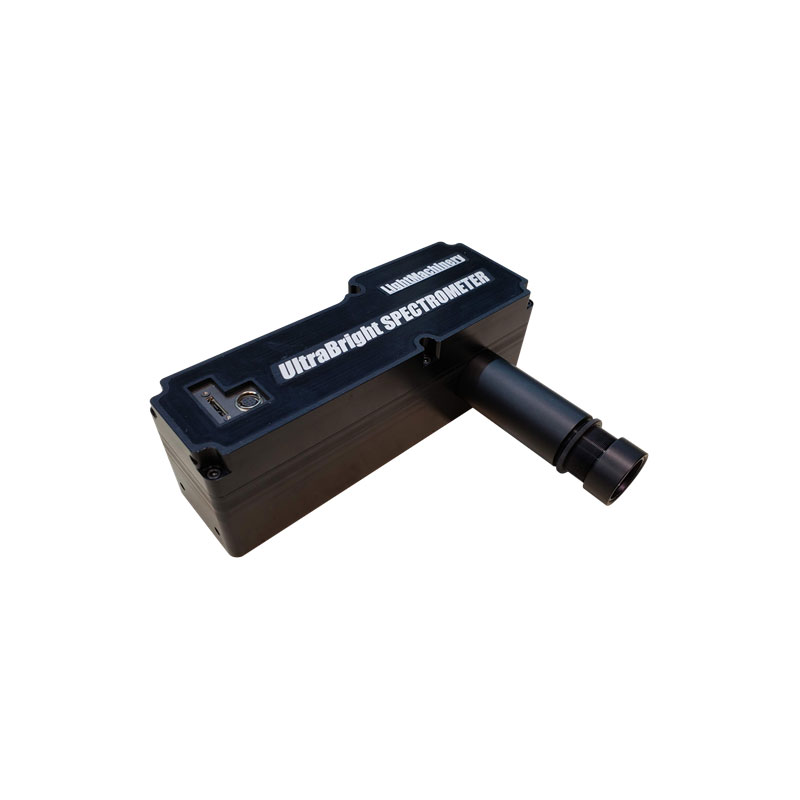

UltraBright Spectrometer
Your spectrometer would work great if you had 100X the light. Problem solved. Introducing the UltraBright Spectrometers from LightMachinery. No slit, just a giant aperture and a huge field of view. Boom. Spectrum. Done These spectrometers are ideal when you are looking at an extended or distant source (not a 10 micron spot). Now you can collect a lot of light and not worry about trying to convince it to pass through a )ny slit. We have listed here a few of the wavelength range and resolu)on models but many varia)ons with more or less range and resolu)on are simple for us to make so let us know what you need, we are happy to help.
Features
Resolution: sub 0.5nm at 532nm
Acquisition and processing speed: >10 Hz
Greater than 1 degree field of view is typical
Specifications
Part Number | Spectral Region | Wavelength Range | Resolution |
---|---|---|---|
UB-10559 | UV (LIBS) | 220 - 340nm | 0.3nm |
UB-10979 | VIS | 400 - 590nm | 0.3nm |
UB-11840 | VIS | 430 - 630nm | 1.0nm |
UB-11063 | VIS | 532 - 600nm | 0.1nm |
UB-10849 | VIS | 590 - 750nm | 0.5nm |
UB-11004 | VIS/IR | 750 - 1000nm | 0.5nm |
UB-xxxxx | UV-VIS-IR | Custom - let us know what you need |
