High Resolution Spectrometer

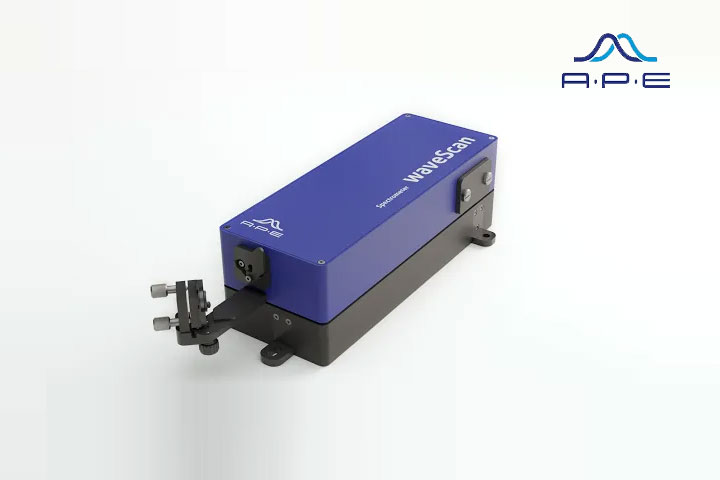

The waveScan is a rotating grating spectrometer. This technology enables it to cover a wide wavelength range from 200 nm to 6300 nm. Especially at wavelengths beyond silicon and above 1100 nm users profit from highest resolution at a low cost. The quick and easy exchangeable input port adapts the waveScan to free-space or fiber lasers. The software offers useful analytical tools and of course data export. The waveScan is also ideal for automatization and long term measurements and can be controlled remotely by USB or TCP/IP.
Specifications
| A.P.E. waveScan | ||
|---|---|---|
| Configuration | Wavelength Range | Resolution (FWHM) |
| 200 ... 1100 nm | 0.2 nm | |
| 220 ... 540 nm | 0.05 nm | |
| 500 ... 1600 nm | 0.2 nm | |
| 800 ... 1600 nm | 0.5 nm | |
| 1500 ... 6300 nm | 2 nm | |
| Scan Rate | ~ 6 Hz | |
| Laser Repetition Rate | > 4 MHz (real-time measurement) > 100 kHz (accumulation mode) > 100 Hz (triggerd mode) |
|
| Wavelength Accuracy | ± 0.1 nm (configuration dependent) | |
| Beam Input | Free-space; Optional fiber coupling | |
| Trigger Input | 1 - 100 kHz, BNC connection; 0.2 V to 5 V TTL signal, or photodiode signal (25 nsec rise time) | |
| Input Polarization | Optimized for horizontal polarization (also any other polarization possible) | |
| Connection | USB | |
| Remote Control | Possible via TCP/IP (SCPI command set) or USB commands | |
