Features
Conversion Efficiency
Conversion efficiencies of up to 5% > 1 W input for 420-500 nm wavelengths.
Multiple Spots Per Crystal
Unique click and shift system provides multiple spots per crystal to prolong its usage with no effect on beam pointing or quality
Excellent Beam Quality

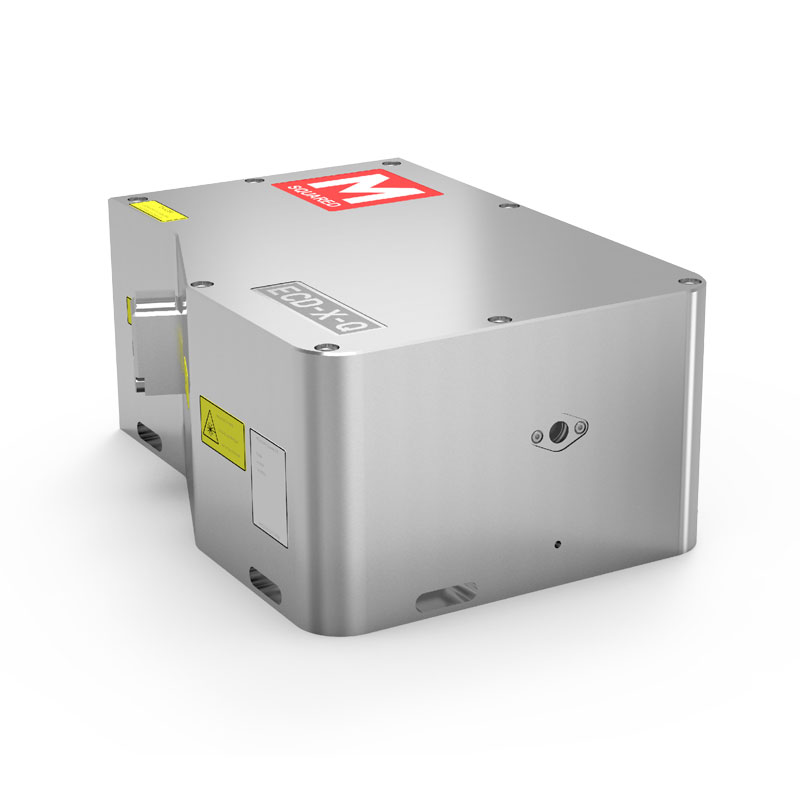

SolsTiS ECD-X-Q features exceptional beam conditioning optics M2 < 1.3.
Low Internal Humidity
The desiccant cavity reduces internal humidity with no requirement for purging.
Broad Wavelength Coverage
Interchangeable mounted crystal packages are available for different wavelengths. Each crystal offers 6 nm of tuning and it’s easy to interchange these crystals for extended coverage.
Highly Stable Lock
SolsTiS ECD-X-Q features a highly stable lock to the doubler.
Optomechanical Stability
The only doubling cavity system built on an Invar baseplate to provide maximum stability.
Easy To Control
An easy to use web interface controls fine wavelength tuning (automatic tracking of fundamental frequency scans) and locking. Alternatively, you can use a published set of TCP/IP controls for third party applications such as LabVIEW and MATLAB.
Specifications
| Tuning Range | 210-250 nm | |
|---|---|---|
| Doubling Efficiency | > 5% for inputs of > 500 mW > 10% for inputs of > 1 W |
|
| Crystal Range | +/- 3 nm from central cut of each crystal | |
| Operating Temperature Range | 16-30°C | |
| Maximum Relative Humidity | 80% non-condensing, up to 30°C | |
| Laboratory Requirements | Mount on optical table with air free of dust (Laminar airflow box recommended) |
|
